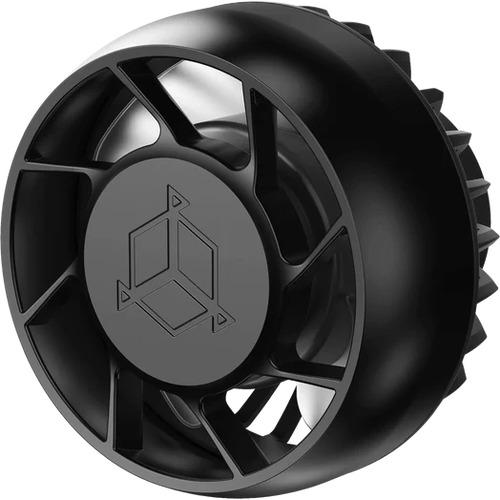

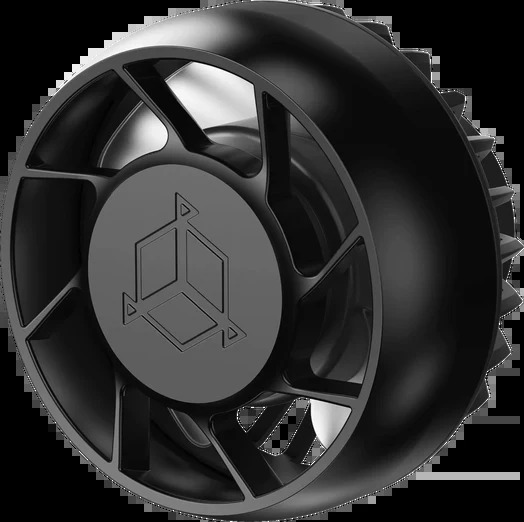

Smart Wave

Efficient wavemaker in the Smart version

Smart Wave is a modern circulation pump that ensures efficient water flow even in the most demanding aquariums. The intelligent controller allows for a range of remote adjustments, including setting four circulation modes (constant, sine, square, and random), ensuring optimal water flow in tanks with even the most advanced arrangements and demanding tank stocking.

Key features

  • modern design and a wide flow stream
  • control through the Smart Reef app with 4 pump operation modes: constant, sine, square, and random
  • double sealing of the parts that come into contact with water significantly reduces the risk of rusting
  • wide range of pump adjustment settings in the aquarium
  • quiet and energy-efficient work of the pump
  • additional display on the controller showing the pump power in percentages
  • high energy efficiency – excellent flow to power consumption ratio (4000 L/h – 10W, 10,000 L/h – 20W, 13,000 L/h – 30W)
  • 12-month warranty

Smart Wave 10

Water flow: 4000 L/h

Dimensions: 6 x 4.5 x 6 cm / 2.4 x 1.8 x 2.4 in

Controller/display size: 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in

Voltage: 24V DC 0.75A

Water resistance: IPX8

Smart Wave 20

Water flow: 10000 L/h

Dimensions: 7.3 x 5.5 x 7.3 cm / 2.9 x 2.2 x 2.9 in

Controller/display size: 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in

Voltage: 24V DC 1.0A

Water resistance: IPX8

Smart Wave 30

Water flow: 13000 L/h

Dimensions: 8 x 6.2 x 8 cm / 3.1 x 2.4 x 3.1 in

Controller/display size: 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in

Voltage: 24V DC 1.5A

Water resistance: IPX8

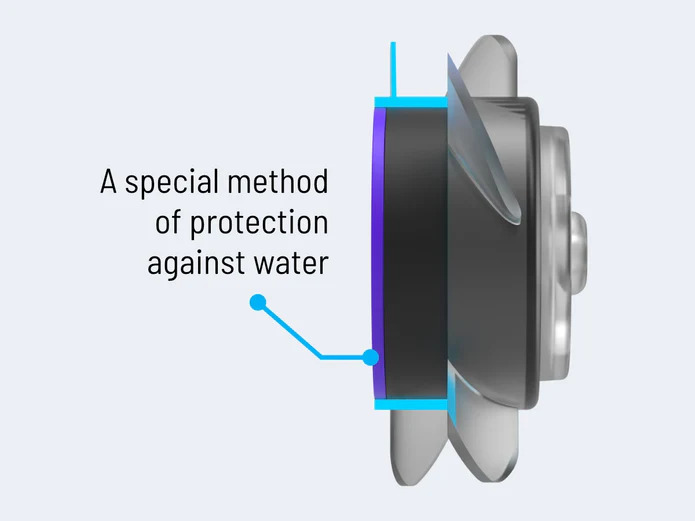

Double sealing of elements – special protection – rust free!

The submerged parts of the pump are specially protected against water, minimizing the risk of rust. Ergonomic design guarantees quiet and energy-saving operation and exceptionally long and trouble-free operation.

Various circulation modes

Smart wave offers up to four water flow modes that can be set according to the individual needs of the tank:

  • constant mode – constant water flow at the specified power
  • sine mode – variable water flow with smooth changes in power within a specified range
  • square mode – variable water flow with abrupt changes in power within a specified range
  • random mode – variable water flow with random changes in power within a specified range

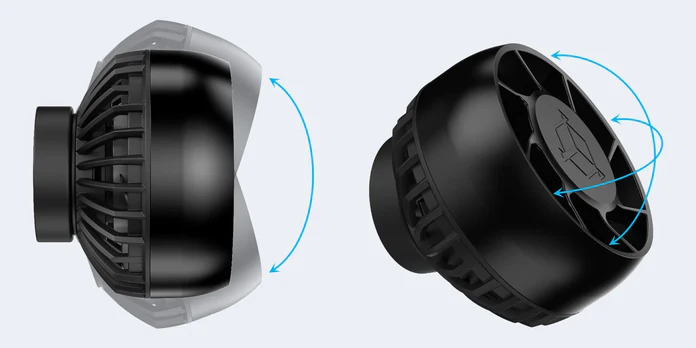

Wide range of pump adjustment in all directions

The water flow can be directed where it is most needed in the tank, thanks to the magnetic base with an overlay that allows adjusting the pump head at various angles.

Additional features:

  • Set of strong magnets for mounting the pump in the aquarium, both straight and at an angle.
  • DIN rail for quick mounting of the controller in a chosen location.
  • Intelligent notifications that allow for a quick response in case of unforeseen events in the tank.

Smart functionalities
in the Smart Reef app

  • Free and user-friendly Smart Reef application
  • for Android, iOS, or computer (browser-based support)
  • Creation and modification of flexible dosing schedules
  • Automation of the dosing process based on real-time
  • parameters levels
  • Ability to specify the direction of pump rotation
  • Quick modification of dosing settings and the ability to add extra doses outside the schedule
  • Dosing in ml or percentage (%)
  • Clear history of dosing activities
  • Remote aquarium management from anywhere in the world, 24/7
  • Information about the remaining amount of liquid
  • in the container for dosing
  • Intuitive and fast calibration process ensuring high dosing precision, with push notifications reminding about the need for recalibration
  • Import and export of dosing schedules

Technical specifications

  Smart wave 10 Smart wave 20 Smart wave 30
water flow 4000 L/h 10000 L/h 13000 L/h
dimensions d x w 6 x 4.5 cm / 2.4 x 1.8 in 7.3 x 5.5 cm / 2.9 x 2.2 in 8 x 6.2 cm / 3.1 x 2.4 in
controller size 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in 7 x 2.5 x 7 cm / 2.8 x 1 x 2.8 in
voltage 24V DC 0.75A 24V DC 1.0A 24V DC 1.5A
water resistance IPX8 IPX8 IPX8
power supply voltage 110-230 AC, CE, UL, 24V DC 110-230V AC, CE, UL, 24V DC 110-230V AC, CE, UL, 24V DC
tank glass thickness max 20mm max 20mm max 20mm

Power supply voltage: 110-230V AC, CE, UL, 24V DC
Pump water resistance: IPX8

CE and FCC certifications for the devices

(5396)

SKU 5396
Barcode # 5904610542781
Brand Reef Factory
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.110m
Shipping Length 0.200m
Shipping Cubic 0.004400000m3
